Transistors - FETs, MOSFETs - Single

Records 6294
Page  194/210
Part Number
Manufacturer
Description
Package
Stock
Quantity
Package
Series
FET Type
Technology
Drain to Source Voltage (Vdss)
Current - Continuous Drain (Id) @ 25°C
Drive Voltage (Max Rds On, Min Rds On)
Vgs(th) (Max) @ Id
Gate Charge (Qg) (Max) @ Vgs
Input Capacitance (Ciss) (Max) @ Vds
Vgs (Max)
FET Feature
Power Dissipation (Max)
Rds On (Max) @ Id, Vgs
Operating Temperature
Mounting Type
Supplier Device Package
Package / Case
Infineon Technologies
MOSFET N-CH 30V 15A 8-SOIC
Package: 8-SOIC (0.154", 3.90mm Width)
Stock49,152
8-SOIC (0.154", 3.90mm Width)
HEXFET?
N-Channel
MOSFET (Metal Oxide)
30V
15A (Ta)
2.8V, 10V
2V @ 250µA
56nC @ 5V
3480pF @ 25V
±12V
-
2.5W (Ta)
7.5 mOhm @ 15A, 10V
-55°C ~ 150°C (TJ)
Surface Mount
8-SO
8-SOIC (0.154", 3.90mm Width)
Infineon Technologies
MOSFET P-CH 55V 31A TO-220AB
Package: TO-220-3
Stock19,884
TO-220-3
HEXFET?
P-Channel
MOSFET (Metal Oxide)
55V
31A (Tc)
10V
4V @ 250µA
63nC @ 10V
1200pF @ 25V
±20V
-
110W (Tc)
60 mOhm @ 16A, 10V
-55°C ~ 175°C (TJ)
Through Hole
TO-220AB
TO-220-3
Infineon Technologies
MOSFET N-CH 30V 64A TO-220AB
Package: TO-220-3
Stock36,096
TO-220-3
HEXFET?
N-Channel
MOSFET (Metal Oxide)
30V
64A (Tc)
4.5V, 10V
1V @ 250µA
33nC @ 4.5V
1650pF @ 25V
±16V
-
94W (Tc)
12 mOhm @ 34A, 10V
-55°C ~ 175°C (TJ)
Through Hole
TO-220AB
TO-220-3
Infineon Technologies
MOSFET N-CH 650V 16.1A TO-252
Package: TO-252-3, DPak (2 Leads + Tab), SC-63
Stock19,680
TO-252-3, DPak (2 Leads + Tab), SC-63
CoolMOS?
N-Channel
MOSFET (Metal Oxide)
650V
16.1A (Tc)
10V
3.5V @ 400µA
44nC @ 10V
950pF @ 100V
±20V
-
208.3W (Tc)
250 mOhm @ 4.4A, 10V
-55°C ~ 150°C (TJ)
Surface Mount
PG-TO252-3
TO-252-3, DPak (2 Leads + Tab), SC-63
Infineon Technologies
MOSFET P-CH 100V 13A DPAK
Package: TO-252-3, DPak (2 Leads + Tab), SC-63
Stock390,120
TO-252-3, DPak (2 Leads + Tab), SC-63
HEXFET?
P-Channel
MOSFET (Metal Oxide)
100V
13A (Tc)
10V
4V @ 250µA
58nC @ 10V
760pF @ 25V
±20V
-
66W (Tc)
205 mOhm @ 7.8A, 10V
-55°C ~ 150°C (TJ)
Surface Mount
D-Pak
TO-252-3, DPak (2 Leads + Tab), SC-63
Infineon Technologies
MOSFET N-CH 650V 11.4A TO263
Package: TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Stock64,986
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
CoolMOS?
N-Channel
MOSFET (Metal Oxide)
650V
11.4A (Tc)
10V
4.5V @ 400µA
41nC @ 10V
1100pF @ 100V
±20V
-
104.2W (Tc)
310 mOhm @ 4.4A, 10V
-55°C ~ 150°C (TJ)
Surface Mount
PG-TO263
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Infineon Technologies
MOSFET N-CH 100V 43A TO220-3
Package: TO-220-3
Stock29,628
TO-220-3
OptiMOS?
N-Channel
MOSFET (Metal Oxide)
100V
43A (Tc)
6V, 10V
3.5V @ 33µA
25nC @ 10V
1800pF @ 50V
±20V
-
71W (Tc)
18 mOhm @ 33A, 10V
-55°C ~ 175°C (TJ)
Through Hole
PG-TO-220-3
TO-220-3
Infineon Technologies
MOSFET N-CH 55V 64A TO-220AB
Package: TO-220-3
Stock784,200
TO-220-3
HEXFET?
N-Channel
MOSFET (Metal Oxide)
55V
64A (Tc)
10V
4V @ 250µA
81nC @ 10V
1970pF @ 25V
±20V
-
130W (Tc)
14 mOhm @ 32A, 10V
-55°C ~ 175°C (TJ)
Through Hole
TO-220AB
TO-220-3
Infineon Technologies
MOSFET N-CH 55V 47A TO-220AB
Package: TO-220-3
Stock5,856
TO-220-3
HEXFET?
N-Channel
MOSFET (Metal Oxide)
55V
47A (Tc)
4V, 10V
2V @ 250µA
48nC @ 5V
1700pF @ 25V
±16V
-
3.8W (Ta), 110W (Tc)
22 mOhm @ 25A, 10V
-55°C ~ 175°C (TJ)
Through Hole
TO-220AB
TO-220-3
Infineon Technologies
MOSFET N-CH 650V 7.3A D2PAK
Package: TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Stock443,928
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
CoolMOS?
N-Channel
MOSFET (Metal Oxide)
650V
7.3A (Tc)
10V
3.9V @ 350µA
27nC @ 10V
790pF @ 25V
±20V
-
83W (Tc)
600 mOhm @ 4.6A, 10V
-55°C ~ 150°C (TJ)
Surface Mount
PG-TO263-3-2
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Infineon Technologies

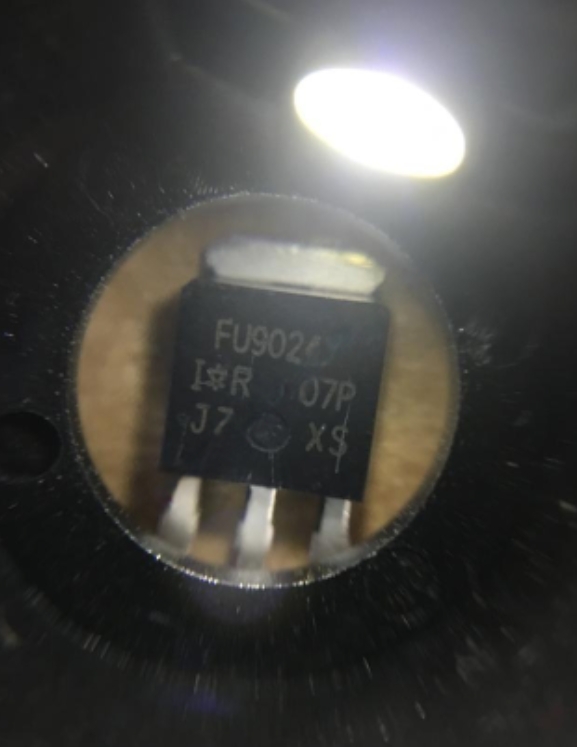

MOSFET P-CH 55V 31A I-PAK
Package: TO-251-3 Short Leads, IPak, TO-251AA
Stock6,756
TO-251-3 Short Leads, IPak, TO-251AA
HEXFET?
P-Channel
MOSFET (Metal Oxide)
55V
31A (Tc)
10V
4V @ 250µA
63nC @ 10V
1200pF @ 25V
±20V
-
110W (Tc)
65 mOhm @ 16A, 10V
-55°C ~ 175°C (TJ)
Through Hole
IPAK (TO-251)
TO-251-3 Short Leads, IPak, TO-251AA
Infineon Technologies
MOSFET N-CH 200V 12A TO-220AB
Package: TO-220-3
Stock103,464
TO-220-3
HEXFET?, StrongIRFET?
N-Channel
MOSFET (Metal Oxide)
200V
12A (Tc)
10V
4.9V @ 50µA
23nC @ 10V
790pF @ 50V
±20V
-
80W (Tc)
170 mOhm @ 7.2A, 10V
-55°C ~ 175°C (TJ)
Through Hole
TO-220AB
TO-220-3
Infineon Technologies
MOSFET N-CH 40V 160A TO263-7
Package: TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
Stock18,240
TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
OptiMOS?
N-Channel
MOSFET (Metal Oxide)
40V
160A (Tc)
10V
4V @ 110µA
137nC @ 10V
10920pF @ 25V
±20V
-
167W (Tc)
1.6 mOhm @ 100A, 10V
-55°C ~ 175°C (TJ)
Surface Mount
PG-TO263-7-3
TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
Infineon Technologies
MOSFET N-CH 55V 42A DPAK
Package: TO-252-3, DPak (2 Leads + Tab), SC-63
Stock390,492
TO-252-3, DPak (2 Leads + Tab), SC-63
HEXFET?
N-Channel
MOSFET (Metal Oxide)
55V
42A (Tc)
4.5V, 10V
3V @ 250µA
35nC @ 5V
1570pF @ 25V
±16V
-
110W (Tc)
13.5 mOhm @ 36A, 10V
-55°C ~ 175°C (TJ)
Surface Mount
D-Pak
TO-252-3, DPak (2 Leads + Tab), SC-63
Infineon Technologies
MOSFET N-CH 100V 10A TO-220AB
Package: TO-220-3
Stock5,216
TO-220-3
HEXFET?
N-Channel
MOSFET (Metal Oxide)
100V
10A (Tc)
4V, 10V
2V @ 250µA
20nC @ 5V
440pF @ 25V
±16V
-
48W (Tc)
180 mOhm @ 6A, 10V
-55°C ~ 175°C (TJ)
Through Hole
TO-220AB
TO-220-3
Infineon Technologies
MOSFET N-CH 100V 42A D2PAK
Package: TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Stock29,124
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
HEXFET?
N-Channel
MOSFET (Metal Oxide)
100V
42A (Tc)
10V
4V @ 250µA
110nC @ 10V
1900pF @ 25V
±20V
-
3.8W (Ta), 160W (Tc)
36 mOhm @ 22A, 10V
-55°C ~ 175°C (TJ)
Surface Mount
D2PAK
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Infineon Technologies
MOSFET N-CH 200V 18A TO-220AB
Package: TO-220-3
Stock897,036
TO-220-3
HEXFET?
N-Channel
MOSFET (Metal Oxide)
200V
18A (Tc)
10V
4V @ 250µA
67nC @ 10V
1160pF @ 25V
±20V
-
150W (Tc)
150 mOhm @ 11A, 10V
-55°C ~ 175°C (TJ)
Through Hole
TO-220AB
TO-220-3
Infineon Technologies
MOSFET N-CH 60V 7A 8-SOIC
Package: 8-SOIC (0.154", 3.90mm Width)
Stock4,400
8-SOIC (0.154", 3.90mm Width)
HEXFET?
N-Channel
MOSFET (Metal Oxide)
60V
7A (Ta)
4.5V, 10V
3V @ 250µA
31nC @ 4.5V
1740pF @ 25V
±20V
-
2.5W (Ta)
26 mOhm @ 4.2A, 10V
-55°C ~ 150°C (TJ)
Surface Mount
8-SO
8-SOIC (0.154", 3.90mm Width)
Infineon Technologies
MOSFET N-CH 55V 17A I-PAK
Package: TO-251-3 Short Leads, IPak, TO-251AA
Stock337,824
TO-251-3 Short Leads, IPak, TO-251AA
HEXFET?
N-Channel
MOSFET (Metal Oxide)
55V
17A (Tc)
10V
4V @ 250µA
20nC @ 10V
370pF @ 25V
±20V
-
45W (Tc)
75 mOhm @ 10A, 10V
-55°C ~ 175°C (TJ)
Through Hole
IPAK (TO-251)
TO-251-3 Short Leads, IPak, TO-251AA
Infineon Technologies
MOSFET N-CH 75V 75A D2PAK
Package: TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Stock15,582
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
HEXFET?
N-Channel
MOSFET (Metal Oxide)
75V
75A (Tc)
10V
4V @ 250µA
110nC @ 10V
3270pF @ 25V
±20V
-
170W (Tc)
9.4 mOhm @ 53A, 10V
-55°C ~ 175°C (TJ)
Surface Mount
D2PAK
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Infineon Technologies
MOSFET N-CH 100V 31A DPAK
Package: TO-252-3, DPak (2 Leads + Tab), SC-63
Stock13,884
TO-252-3, DPak (2 Leads + Tab), SC-63
HEXFET?
N-Channel
MOSFET (Metal Oxide)
100V
31A (Tc)
10V
4V @ 250µA
56nC @ 10V
1690pF @ 25V
±20V
-
3W (Ta), 110W (Tc)
39 mOhm @ 18A, 10V
-55°C ~ 175°C (TJ)
Surface Mount
D-Pak
TO-252-3, DPak (2 Leads + Tab), SC-63
Infineon Technologies
MOSFET N-CH 100V 17A DPAK
Package: TO-252-3, DPak (2 Leads + Tab), SC-63
Stock15,096
TO-252-3, DPak (2 Leads + Tab), SC-63
HEXFET?
N-Channel
MOSFET (Metal Oxide)
100V
17A (Tc)
4V, 10V
2V @ 250µA
34nC @ 5V
800pF @ 25V
±16V
-
79W (Tc)
105 mOhm @ 10A, 10V
-55°C ~ 175°C (TJ)
Surface Mount
D-Pak
TO-252-3, DPak (2 Leads + Tab), SC-63
Infineon Technologies
MOSFET N-CH 100V 17A TO-220AB
Package: TO-220-3
Stock26,580
TO-220-3
HEXFET?
N-Channel
MOSFET (Metal Oxide)
100V
17A (Tc)
10V
4V @ 250µA
37nC @ 10V
920pF @ 25V
±20V
-
70W (Tc)
90 mOhm @ 9A, 10V
-55°C ~ 175°C (TJ)
Through Hole
TO-220AB
TO-220-3
Infineon Technologies
MOSFET P-CH 55V 11A I-PAK
Package: TO-251-3 Short Leads, IPak, TO-251AA
Stock216,768
TO-251-3 Short Leads, IPak, TO-251AA
HEXFET?
P-Channel
MOSFET (Metal Oxide)
55V
11A (Tc)
10V
4V @ 250µA
19nC @ 10V
350pF @ 25V
±20V
-
38W (Tc)
175 mOhm @ 6.6A, 10V
-55°C ~ 150°C (TJ)
Through Hole
IPAK (TO-251)
TO-251-3 Short Leads, IPak, TO-251AA
Infineon Technologies
MOSFET P-CH 60V 8.8A TO-220
Package: TO-220-3
Stock14,994
TO-220-3
SIPMOS?
P-Channel
MOSFET (Metal Oxide)
60V
8.8A (Tc)
10V
4V @ 250µA
15nC @ 10V
420pF @ 25V
±20V
-
42W (Tc)
300 mOhm @ 6.2A, 10V
-55°C ~ 175°C (TJ)
Through Hole
PG-TO-220-3
TO-220-3
Infineon Technologies
MOSFET N-CH 55V 75A D2PAK
Package: TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Stock455,748
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
HEXFET?
N-Channel
MOSFET (Metal Oxide)
55V
75A (Tc)
10V
4V @ 250µA
110nC @ 10V
3450pF @ 25V
±20V
-
170W (Tc)
6.5 mOhm @ 66A, 10V
-55°C ~ 175°C (TJ)
Surface Mount
D2PAK
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Infineon Technologies
MOSFET N-CH 55V 110A D2PAK
Package: TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Stock48,000
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
HEXFET?
N-Channel
MOSFET (Metal Oxide)
55V
110A (Tc)
10V
4V @ 250µA
146nC @ 10V
3247pF @ 25V
±20V
-
200W (Tc)
8 mOhm @ 62A, 10V
-55°C ~ 175°C (TJ)
Surface Mount
D2PAK
TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Infineon Technologies
MOSFET P-CH 30V 10A 8-SOIC
Package: 8-SOIC (0.154", 3.90mm Width)
Stock4,400
8-SOIC (0.154", 3.90mm Width)
HEXFET?
P-Channel
MOSFET (Metal Oxide)
30V
10A (Ta)
4.5V, 10V
1V @ 250µA
92nC @ 10V
1700pF @ 25V
±20V
-
2.5W (Ta)
20 mOhm @ 5.6A, 10V
-55°C ~ 150°C (TJ)
Surface Mount
8-SO
8-SOIC (0.154", 3.90mm Width)
Infineon Technologies
MOSFET N-CH 200V 9.3A TO-220AB
Package: TO-220-3
Stock4,048
TO-220-3
HEXFET?
N-Channel
MOSFET (Metal Oxide)
200V
9.3A (Tc)
10V
4V @ 250µA
35nC @ 10V
575pF @ 25V
±20V
-
82W (Tc)
300 mOhm @ 5.4A, 10V
-55°C ~ 175°C (TJ)
Through Hole
TO-220AB
TO-220-3
Infineon Technologies
MOSFET N-CH 30V 78A TO220AB
Package: TO-220-3
Stock67,632
TO-220-3
HEXFET?
N-Channel
MOSFET (Metal Oxide)
30V
78A (Tc)
4.5V, 10V
2.35V @ 50µA
23nC @ 4.5V
2139pF @ 15V
±20V
-
75W (Tc)
4.8 mOhm @ 40A, 10V
-55°C ~ 175°C (TJ)
Through Hole
TO-220AB
TO-220-3
